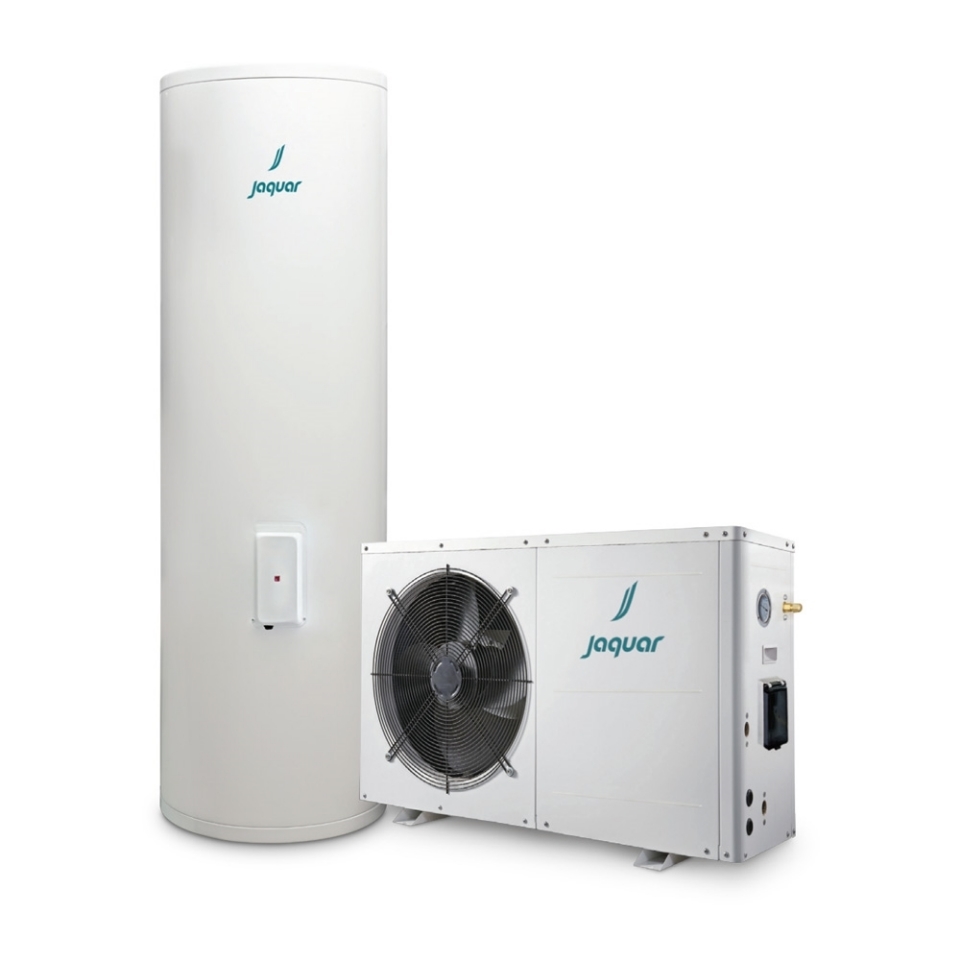

Integra-X Split Heat Pump 200L

Name: Integra-X Split Heat Pump 200L
Brand: Jaquar
Rating: 5 (15 reviews)

Quantity

Disclaimer:

Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
The prices are subject to change without notice and those ruling at the time of supply will be charged.
Colours & sizes of product images shown in the Website may vary in reality

Product Specifications:-

Details	Integra-x Split Heat Pump
Tank Volume (L)	200
Rated Heating Capacity (kW)	3.6
Rated Input Power (kW)	0.87
Working Ambient Temperature (℃)	-7～43
Max Outlet Temperature (℃)	60/75
Required Power Supply (V/Ph/Hz)	220/1/50
Heating Element (kW)	3.0 kW
Refrigerant Type	R410a

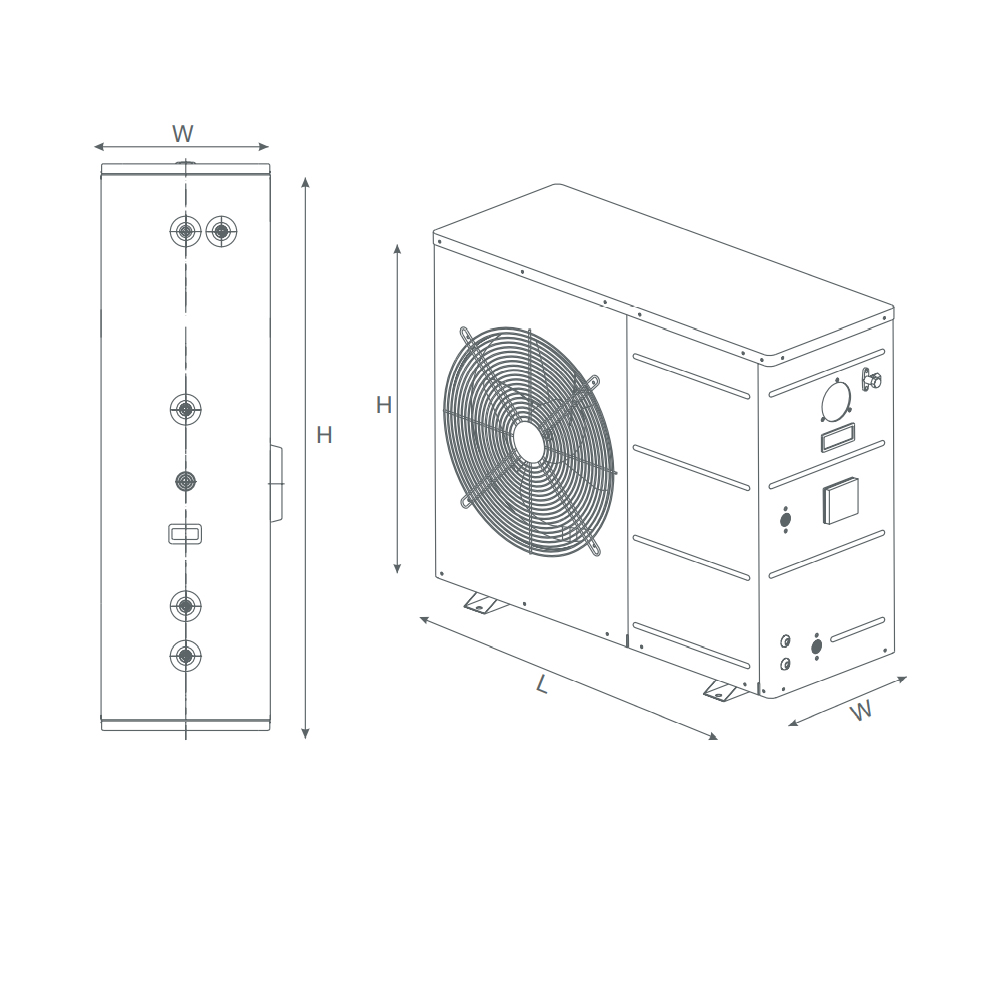

Product Dimension (mm)	Unit- 385X550X936 Tank- 515 X1730
Weight - Net/ Gross (Kg)	Unit - 55/59 Tank - 78/84
Warranty	4 Years on Tank 2 Years on Heating Element, Compressor with Sealed System 1 Year on other components
